kubeadm Config file graduation

Table of Contents

• Summary
• Motivation
  • Goals
  • Non-Goals
• Proposal
  • v1beta1
    • Decoupling the kubeadm types from other ComponentConfig types
    • Re-design how kubeadm configurations are persisted
    • Use substructures instead of the old "single flat object"
  • v1beta2
    • Add config options for new and existing kubeadm features
  • v1beta3
    • Make kubeadm’s config format more CRD and third party friendly
    • Allow skipping phases via config
    • Remove deprecated structures and fields
    • Other changes
  • Risks and Mitigations
• Graduation Criteria
• Implementation History
  • v1alpha3 released with Kubernetes 1.12
  • v1beta1 released with Kubernetes 1.13
  • v1beta2 released with Kubernetes 1.15
  • v1beta3 released with Kubernetes 1.22
• Drawbacks

Summary

This KEP is meant to describe design goal and the proposed solution for implementing the kubeadm config file format.

The kubeadm config file today is one of the first touch points with Kubernetes for many users and also for higher level tools leveraging kubeadm; as a consequence, providing a more stable and reliable config file format is considered one of the top priorities for graduating kubeadm itself to GA and for the future of kubeadm itself.

Motivation

The kubeadm config file is a set of YAML documents with versioned structs that follow the Kubernetes API conventions with regards to apiVersion and kind, but these types aren’t exposed as an API endpoint in the API server. kubeadm follows the ComponentConfig conventions.

The kubeadm config file was originally created as alternative to command line flags for kubeadm init and kubeadm join actions, but over time the number of options supported by the kubeadm config file has grown continuously, while the number of command line flags is intentionally kept under control and limited to the most common and simplest use cases.

As a consequence today the kubeadm config file is the only viable way for implementing many use cases like e.g. usage of an external etcd, customizing Kubernetes control plane components or kube-proxy and kubelet parameters.

Additionally, the kubeadm config file today acts also as a persistent representation of the cluster specification that can be used at a any points in time after kubeadm init e.g. for executing kubeadm upgrade actions.

Goals

• To provide a solution for decoupling the kubeadm ComponentConfig types from other Kubernetes components’ ComponentConfig types.

• To re-design how kubeadm configurations are persisted, addressing the known limitations/weakness of the current design; more in detail, with the aim to provide a better support for high availability clusters, it should be provided a clear separation between cluster wide settings, control plane instance settings, node/kubelet settings and runtime settings (setting used by the current command but not persisted).

• Improve the current kubeadm config file format by using specialized substructures instead of the old “single flat object with only fields”.

Non-Goals

• To steer/coordinate all the implementation efforts for adoption of ComponentConfig across all the different Kubernetes components.

• To define a new home for the Bootstrap Token Go structs.

• To address all possible proposed changes, that were proposed to the kubeadm config format. Specifically we are trying to avoid changes, that have a fairly limited use cases.

Proposal

v1beta1

This section outlines proposed changes to be made into v1beta1, possibly appearing in stages in alpha versions between v1alpha2 and v1beta1.

Decoupling the kubeadm types from other ComponentConfig types

The v1alpha2 kubeadm config types embeds the ComponentConfig for kube-proxy and kubelet into the MasterConfiguration object; it is expected that also ComponentConfig for kube-controller manager, kube-scheduler and kube-apiserver will be added in future (non goal of this KEP).

This strong type of dependency - embeds - already created some problem in the v1.10 cycle, and despite some improvements, the current situation is not yet ideal, because e.g embedded dependency could impact the kubeadm config file life cycle, forcing kubeadm to change its own config file version every time one of the embedded component configurations changes.

v1beta1 config file version is going to address this problem by removing embedded dependencies from the external kubeadm config types.

Instead, the user will be allowed to pass other component’s ComponentConfig in separated YAML documents inside of the same YAML file given to kubeadm init --config.

please note that the kubeadm internal config might continue to embed components config for some time into the future because kubeadm uses its internal config to propagate the knowledge of such data structures e.g. for propagating network configuration settings to kubelet, setting defaults, validating or manipulating YAML etc.

Re-design how kubeadm configurations are persisted

In v1alpha2 the kubeadm MasterConfiguration struct is persisted as a whole into the kubeadm-config ConfigMap, but this situation has well know limitations/weaknesses:

• There is no clear distinction between cluster wide settings (e.g. the kube-apiserver server extra-args that should be consistent across all instances) and control plane instance settings (e.g. the API server advertise address of a kube-apiserver instance). NB. This is currently the main blocker for implementing support for high availability clusters in kubeadm.

• There is no clear distinction between cluster wide settings and node/kubelet specific settings (e.g. the node name of the current node)

• There is no clear distinction between cluster wide settings and runtime configurations (e.g. the token that should be created by kubeadm init)

• ComponentConfigs are stored both in the kubeadm-config and in the kubeproxy-config and kubelet-config-vX.Y ConfigMaps, with the first used as authoritative source for updates, while the others are the one effectively used by components.

Considering all the above points, and also the split of the other components ComponentConfigs from the kubeadm MasterConfiguration type described in the previous paragraph, it should be re-designed how kubeadm configuration is persisted.

The proposed solution leverage on the new kubeadm capability to handle separated YAML documents inside of the same kubeadm-config YAML file. More in detail:

• MasterConfiguration will be split into two other top-level kinds: InitConfiguration and ClusterConfiguration.
• InitConfiguration will host the node-specific options like the node name, kubelet CLI flag overrides locally, and ephemeral, init-only configuration like the Bootstrap Tokens to initialize the cluster with.
• ClusterConfiguration will host the cluster-wide configuration, and ClusterConfiguration is the object that will be stored in the kubeadm-config ConfigMap.
• Additionally, NodeConfiguration will be renamed to JoinConfiguration to be consistent with InitConfiguration and highlight the coupling to the kubeadm join command and its ephemeral nature.

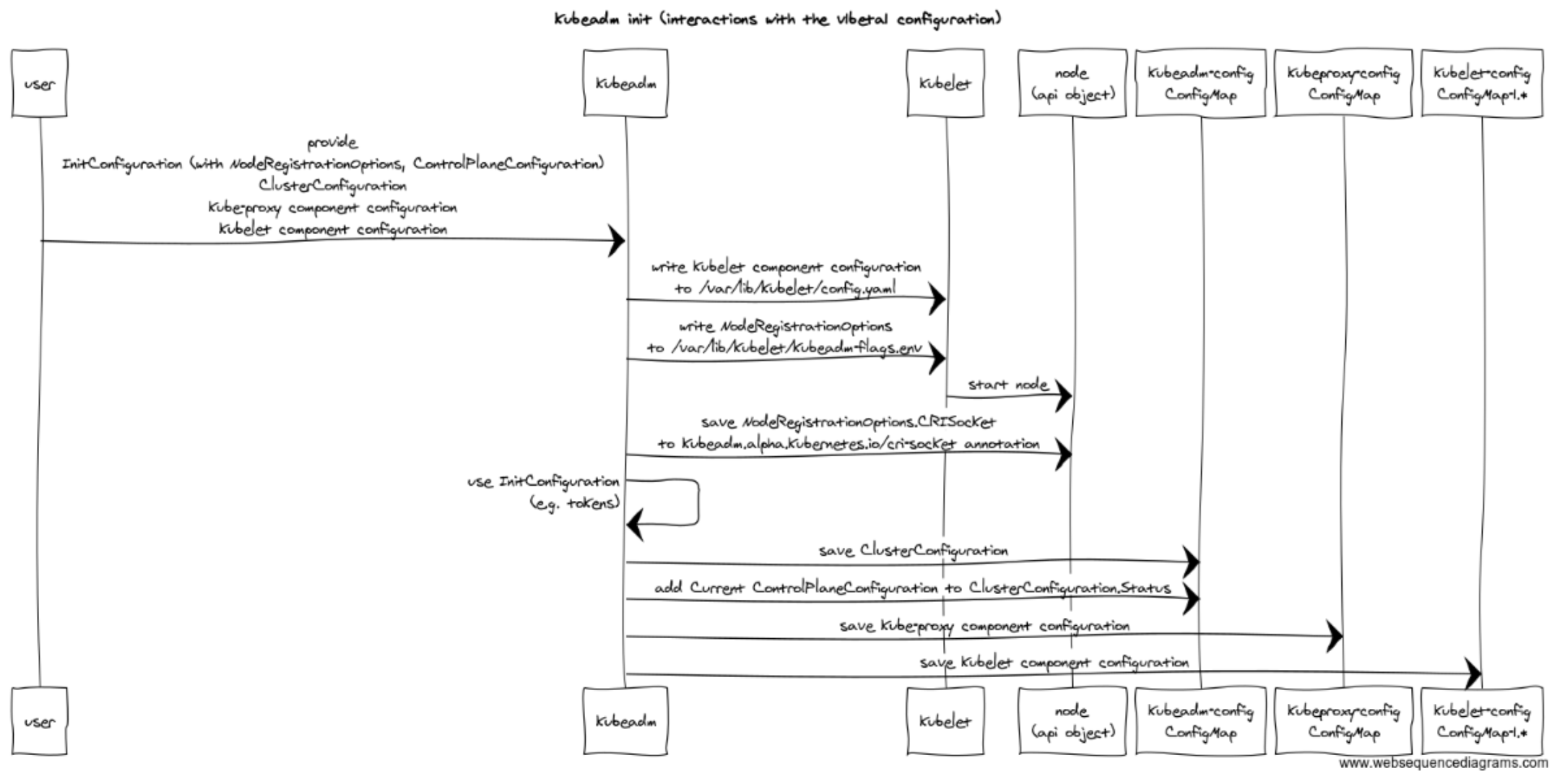

The new kubeadm init flow configuration-wise is summarized by the attached schema.

link

As a consequence, also how the kubeadm configuration is consumed by kubeadm commands should be adapted as described by following schemas:

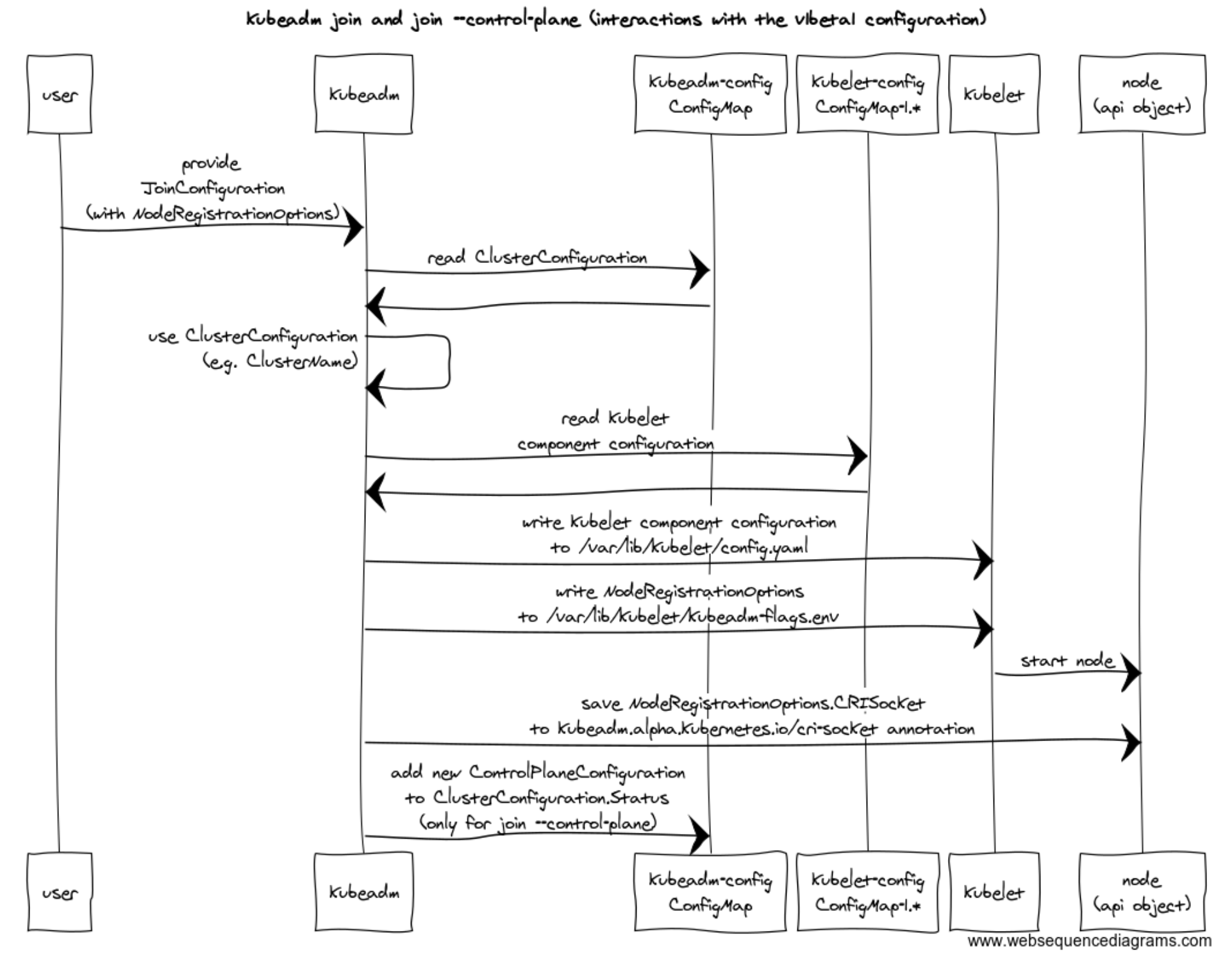

• kubeadm join and kubeadm join –master

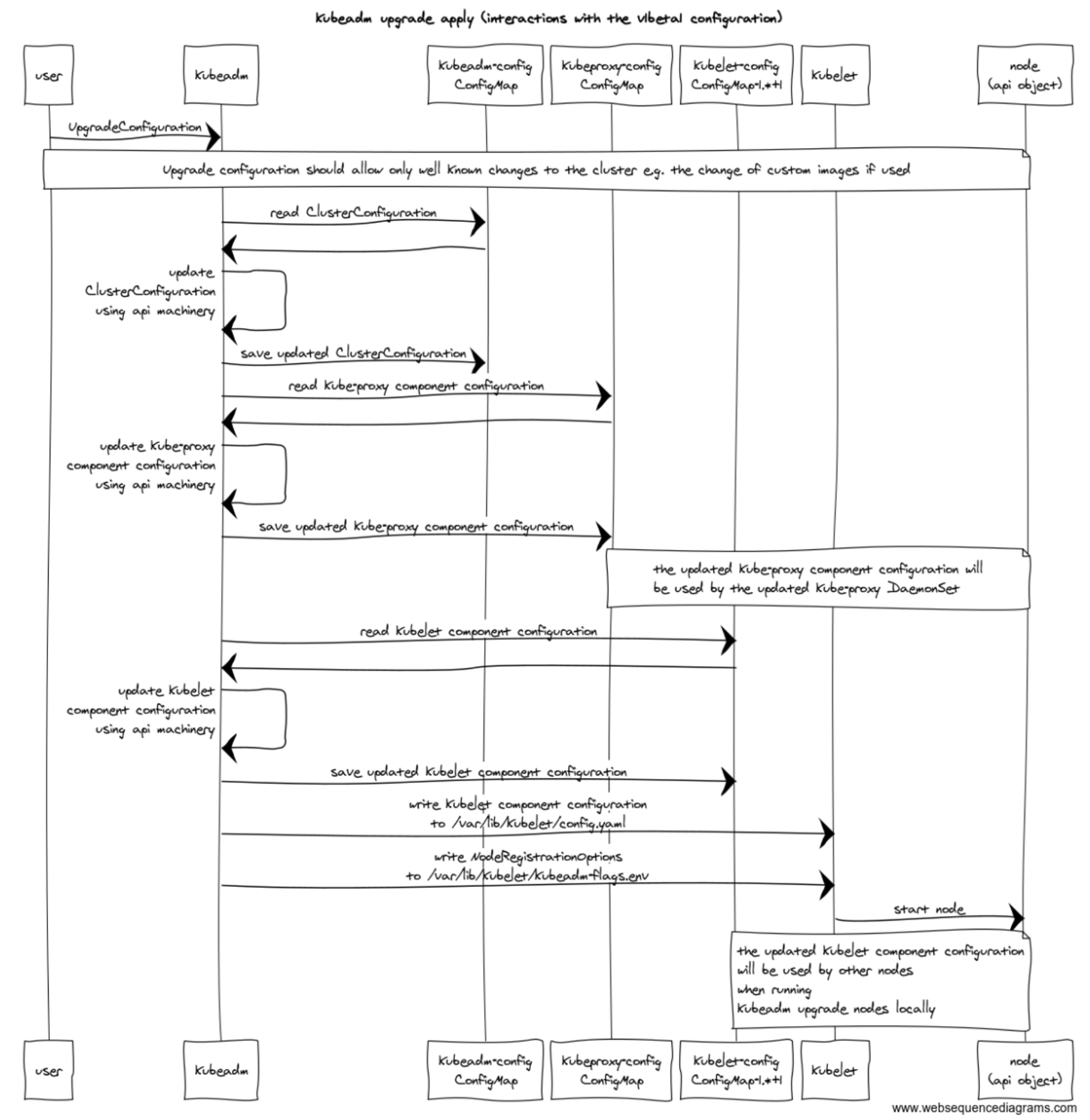

• kubeadm upgrade apply

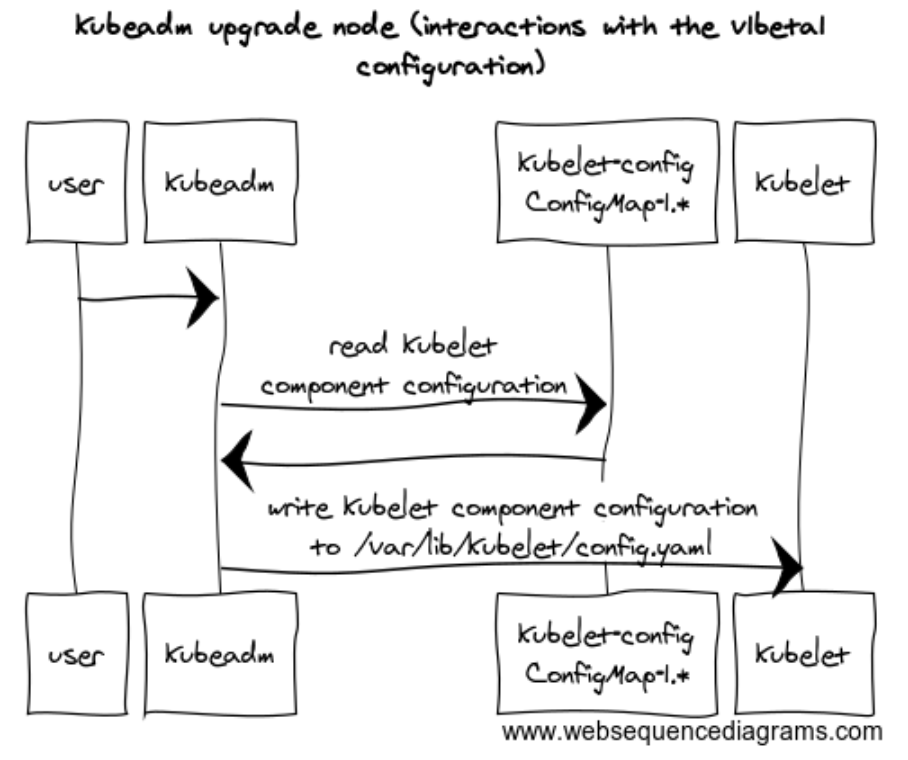

• kubeadm upgrade node

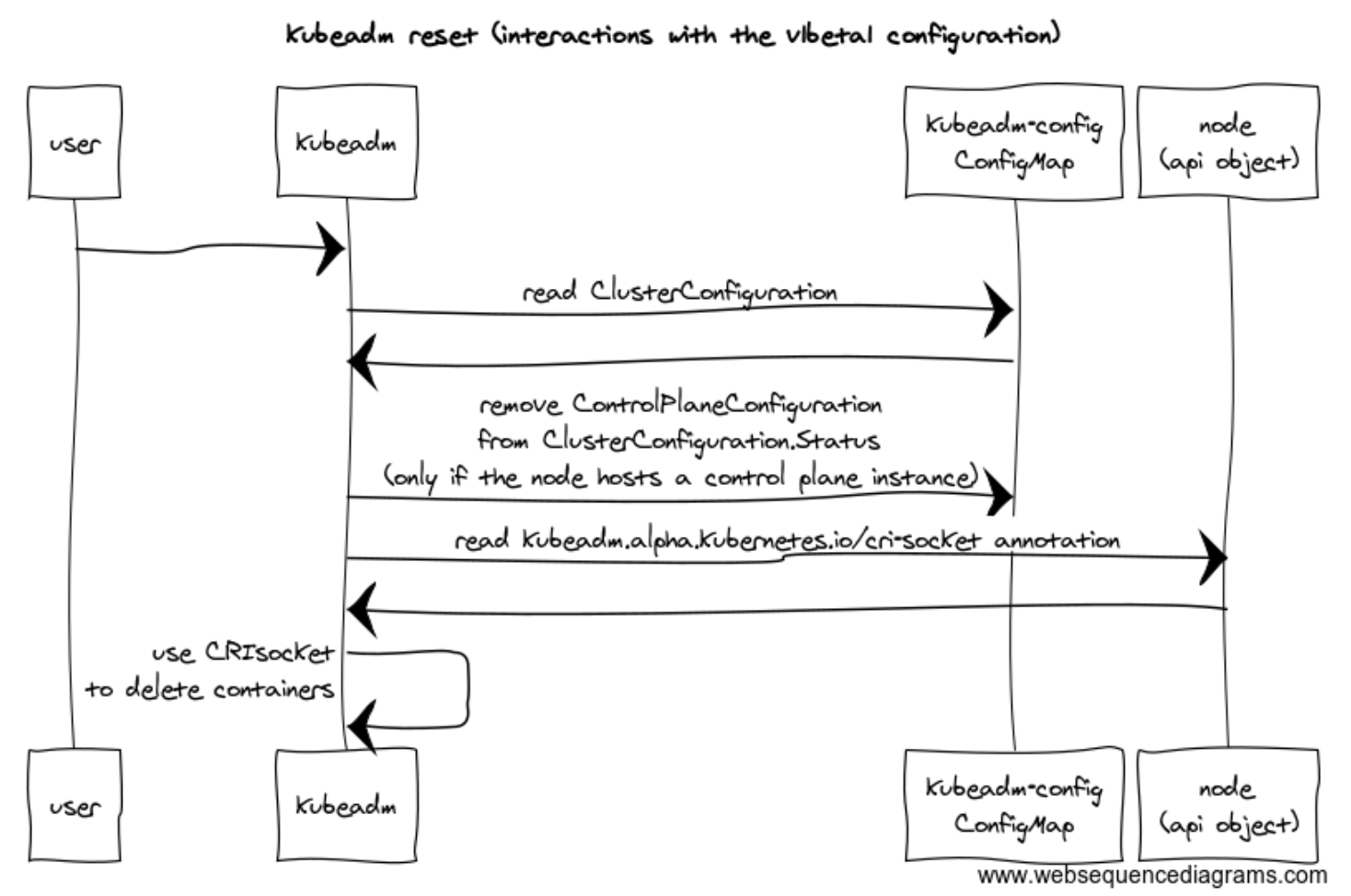

• kubeadm reset

Use substructures instead of the old “single flat object”

Even if with few exceptions, the kubeadm MasterConfiguration and NodeConfiguration types in v1alpha1 and v1alpha2 are basically single, flat objects that holds all the configuration settings, and this fact e.g. doesn’t allow to a clearly/easily understand which configuration options relate to each other or apply to the different control plane components.

While redesigning the config file for addressing the main issues described in previous paragraphs, kubeadm will provide also a cleaner representation of attributes belonging to single component/used for a specific goal by creating dedicated objects, similarly to what’s already improved for etcd configuration in the v1alpha2 version.

v1beta2

This section outlines changes to be introduced in a second Beta iteration of the kubeadm configuration.

Add config options for new and existing kubeadm features

Over time kubeadm gains new features which may require the addition of new settings to the config format. One notable such feature, that was introduced after the release of v1beta1 is the Certificates copy for join –control-plane KEP .

In addition to that, some new settings are added to the config format for existing features, improving the original design and addressing user feedbacks. These include an ability to specify the timeout that is used to wait for the API server to become active (a setting already introduced in v1beta1) and an ability to ignore some pre-flight errors (a setting to be introduced in v1beta2).

Nevertheless, SIG Cluster Lifecycle should be careful not to add fields that are needed for fairly limited use cases.

v1beta3

This section outlines changes to be introduced in a third Beta iteration of the kubeadm configuration.

The version introduces no drastic changes since v1beta2. It performs cleanup of deprecated features and introduces features that have seen high demand.

Make kubeadm’s config format more CRD and third party friendly

With more and more external tools consuming and providing kubeadm configuration it is desirable to increase the compatibility with other tools. This includes:

• Adding metadata fields to InitConfiguration, JoinConfiguration and ClusterConfiguration.
• Marking omitempty fields as +optional.

Allow skipping phases via config

In the past few releases users have been increasingly using the kubeadm phases feature to skip the installation of the bundled kube-proxy and CoreDNS addon. From the configuration API this will be done with a skipPhases field (string slice) that is part of InitConfiguration and JoinConfiguration.

Remove deprecated structures and fields

• ClusterStatus: deprecated and replaced by annotating the kube-apiserver Pod.
• ClusterConfiguration.dns.type: no longer needed since kubeadm only supports CoreDNS.
• ClusterConfiguration.useHyperkubeImage: hyperkube was previously deprecated.

Other changes

Lower priority changes will be a best effort.

Risks and Mitigations

This is a change mostly driven by kubeadm maintainers, without an explicit buy-in from customers using kubeadm in large installations

The differences from the current config file are relevant and kubeadm users can get confused.

Above risks will be mitigated by:

• providing a fully automated conversion mechanism and a set of utilities under the kubeadm config command (a goal and requirement for this KEP)
• The new structure could potentially make configuration options less discoverable as they’re buried deeper in the code. Sufficient documentation for common and advanced tasks will help mitigate this.
• writing a blog post before the release cut
• providing adequate instructions in the release notes

Impact on the code is considerable.

This risk will be mitigated by implementing the change according to following approach:

• introducing a new v1alpha3 config file as a intermediate step before v1beta1
• implementing all the new machinery e.g. for managing multi YAML documents in one file, early in the cycle
• ensuring full test coverage about conversion from v1alpha2 to v1alpha3, early in the cycle
• postponing the final rename from v1alpha3 to v1beta1 only when all the graduation criteria are met, or if this is not the case, iterating the above steps in following release cycles

Graduation Criteria

• There is an upgrade path from earlier versions.
• The primary kinds that can be serialized/deserialized are InitConfiguration, JoinConfiguration and ClusterConfiguration.
• ComponentConfig structs for other Kubernetes components are supplied besides ClusterConfiguration in different YAML documents.
• SIG Cluster Life cycle is happy with the structure of the types.

Implementation History

v1alpha3 released with Kubernetes 1.12

• The kubeadm own types were decoupled from the other component config types.
• Clear distinction was introduced between cluster wide settings (stored on a config map in the cluster), node only and runtime settings.

v1beta1 released with Kubernetes 1.13

• Focus on providing more structure of the config format, in contrast with large and mostly flat structures that deal with different kinds of settings.
• Improved the config format with respect to HA.

v1beta2 released with Kubernetes 1.15

• Added new fields for specifying the encryption key for certificates and for specifying which pre-flight errors to be ignored.
• omitempty has a wider use, but is removed from the taints field of NodeRegistrationOptions.

v1beta3 released with Kubernetes 1.22

• Details for the changes in v1beta3 since v1beta2 can be seen in the changelog .
• v1beta1 removed.

Drawbacks

The differences from the current kubeadm config are relevant and kubeadm users can get confused.

The impacts on the current codebase are considerable it is required an high commitment from the SIG. This comes with a real opportunity cost.
